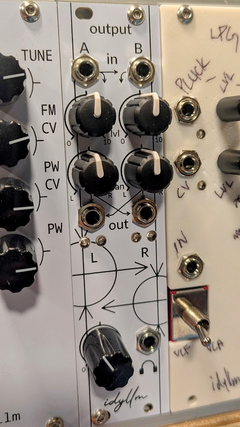

Output Module
An audio output module for Eurorack, combining two mono input channels into a stereo output with a panning mixer. The stereo output is suitable to drive headphones or small speakers.
Project Source
The project files, including schematic and layout, are available on github.
Features
The output module provides some basic mixing and leveling before forwarding the audio signal to an amplifier for headphones.
- Two input channels (A and B) with the second normaled to the first.
- Independent input level adjustments for both channels
- Stereo panning mixer
- Level indicator (red indicates V_{pp} \gtrapprox 9V)
- Output volume control
- LM386 output amplifiers
See the design section for details on the theory and implementation of the module. An assembly guide contains the BOM and assembly instructions. The schematic is also available for reference.
