Assembly Guide

SMT Components

If manually placing SMT components, use of a stencil and solder paste is recommended.

  1. D11 and D12
  2. R33 and R34 (ferrite beads)
  3. remaining SMT diodes D1-D9 (D3 does not exist)
  4. Q8 (2N7002K NMOSFET)
  5. remaining BJTs (Q1-Q7, Q9)
  6. ICs U1-U4
  7. Tantalum capacitors C2 and C8
  8. Ceramic capacitors C3, C1, C4-C7, C9-C14, C17
  9. Resistors R1-R32

THT Components

Once all SMT components are placed, solder THT components

Front Side

  1. C15 and C16
  2. SW1 (push button)
  3. J1-J3
  4. RV1-RV5 (note values and taper)
  5. SW2

Place and solder the 3mm LED once the faceplate is fitted.

Back Side

  1. J4 (IDC header)

Test and Calibration

No calibration required. To test,

  1. connect the envelope output to an oscilloscope (use 'roll' mode to capture at 500ms/div+)
  2. use the manual gate to trigger an envelope (adjust controls, observe response)
  3. switch to loop mode and confirm repeated envelopes
  4. apply an additional gate input to the trigger input to check that the AD/R can be triggered independently.

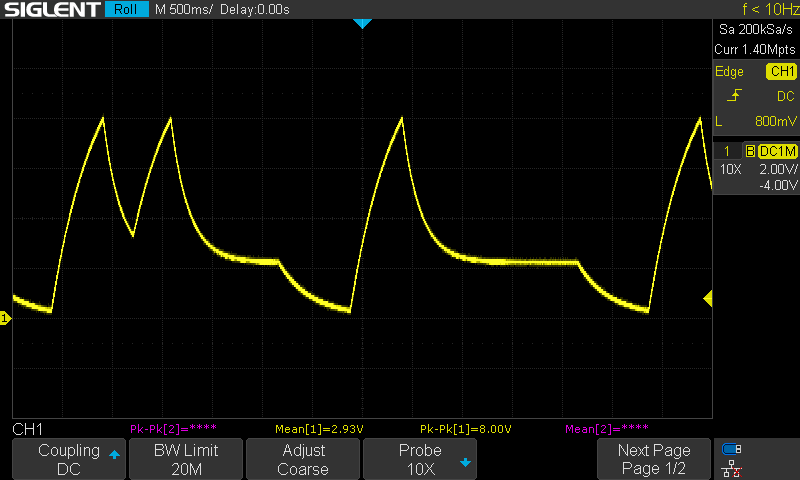

The screenshot below shows the ADSR EG in loop mode with an extra trigger pulse applied during the envelope sequence.

Oscilloscope capture

BOM

Download (.csv)

Reference Value Footprint Qty
C1,C4,C5,C6,C7 10n 0805 5
C2,C8 4u7 3216-18 Tantalum 2
C3 1n 0805 1
C9,C10,C11,C12,C13,C14,C17 100n 0805 7
C15,C16 10u Radial D5.0mm P2.50mm 2
D1,D2,D4,D5,D6,D7,D8,D9 1N4148 SOD-123 8
D10 LED LED D3.0mm 1
D11,D12 B140-E3 SMA 2
J1,J2,J3 3.5mm TS Jack WQP-PJ301M-12 3
J4 IDC 10P Header IDC Header 2x05 P2.54mm Vertical 1
Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q9 BC847 SOT-23 8
Q8 2N7002K SOT-23 1
R1,R2,R3,R5 100k 0805 4
R4,R7,R8,R9,R17,R20 47k 0805 6
R6,R10 10k 0805 2
R11,R13,R15,R16,R18,R19,R21 22k 0805 7
R12,R14,R33,R34 10R 0805 4
R22,R31,R32 1k 0805 3
R23 270k 0805 1
R24 1M 0805 1
R25 120k 0805 1
R26,R27 4k7 0805 2
R28,R29,R30 100 0805 3
RV1 B1M Bourns PTV09A Vertical 1
RV2 B10k Bourns PTV09A Vertical 1
RV3,RV4,RV5 A1M Bourns PTV09A Vertical 3
SW1 Pushbutton 6mm mom-on 1
SW2 DPDT Dailywell DPDT 2MD1T1B1M1 1
U1,U3 TLC555xD SOIC-8 3.9x4.9mm 2
U2 HEF4093B SOIC-14 3.9x8.7mm 1
U4 TL074 SOIC-14 3.9x8.7mm 1
